4×2 Water Tank Truck
طلب عرض سعر
الموقع الإلكتروني: http://heavytrucks-sa.com/2-3-1-4-2-water-tank-truck.html
CONSTRUCTION TRUCKS
The 4×2 water tank truck is engineered for versatile applications, equipped with a 290 HP engine, 9-speed transmission, and a two-stage reduction rear axle. It features a 10,000-liter tank and is powered by a Weichai 6-cylinder engine. With a differential lock for improved off-road traction, this model is well-suited for urban sanitation, oilfields, mining operations, and agricultural water transport.
- Engine power 290 HP / 2200 rpm
- Tank capacity 10 m³ (10,000 liters)
- Gradeability 30% (fully loaded)
- Maximum speed 80 km/h

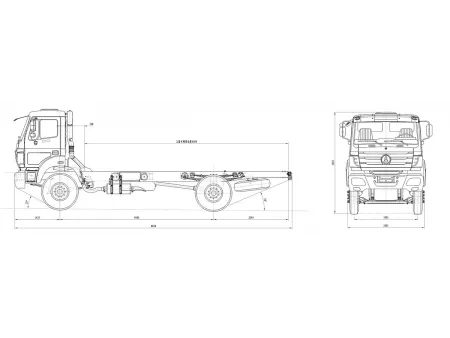

Dimensional Drawing
Specifications
| Model | |
| Driving Type | 4×2 |

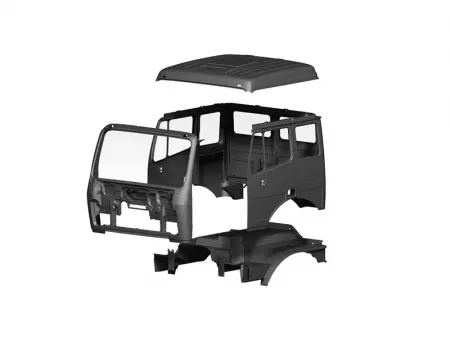

| Cab | Cab Exterior Metal bumper Three-step ladder Exterior sun visor Sun roof (manual) Rear view mirror (manual adjustment) Cab Interior Air-sprung suspension driver's seat Cooling and heating air conditioner Steering wheel (with adjustable height and angle) Door lock (manual) Radio (with MP3 player) Digital instruments |
| Engine | Type: WP10.290E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 290/2200 Max. Torque (N.m/rpm): 1160/1200~1600 Cylinder: 6 in-line |
| Transmission | 9JS150A / 15.53-1 Gears: 9 speed forward Synchromesh or Constant Mesh: Constant Mesh Transfer Box: not available Power Take-Off (P.T.O.): yes |
| Steering System | 8098 Recirculating ball steering gear, hydraulic booster |
| Clutch | Ø430mm single dry friction disc, diaphragm spring, pushing type |
| Fuel Tank | 400L (iron) |
| Front Axle | 7500kg, non-drive steering |
| Rear Axle | 13000kg, double reduction driving axle, hydraulic shock absorber, differential lock |
| Suspension | Front 13pcs / Rear 9 8pcs hard parabolic spring |
| Brakes | Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS) |
| Electrical Equipment | Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH |
| Performance Data | Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921) |
| Tyre | Size and Ply Rating: 12.00R20-18PR Steel Rim |
| Upper Body | 8-10m³ |
| Dimensions | Wheel Base (WB): 4500mm Overall Length (OL): 7100mm Overall Width (OW): 2550mm Overall Height (OH): 3670mm Front Overhang (FOH): 1515mm Rear Overhang (ROH): 1085mm |
| Total Vehicle Weight | 10000kg |
*The above data is subject to the actual product.
Applications
- Urban sanitation: Equipped with a 10,000-liter tank, the 4×2 water tank truck is ideal for city street cleaning and landscaping tasks. Its short wheelbase ensures maneuverability in narrow streets and frequent stop-and-go traffic. The tank is built with anti-corrosive materials, making it suitable for high-salinity environments.
- Oilfield support: Built with a reinforced chassis and wide tires, this construction tanker handles the rough gravel roads of oilfield sites with ease. It is suitable for transporting fracturing water and waste liquids, with high-temperature and explosion-resistant configurations tailored for extreme desert operations.
- Mining operations: Designed for heavy-duty short-distance hauling on muddy mine roads, the tank features a wear-resistant coating to withstand abrasive dust and corrosive conditions common in mining areas.
- Construction & agriculture: This multi-purpose water tanker is ideal for dust suppression on construction sites and irrigation in farmland. With a minimum ground clearance of 300 mm, it performs reliably on unpaved roads and shallow muddy terrain.
