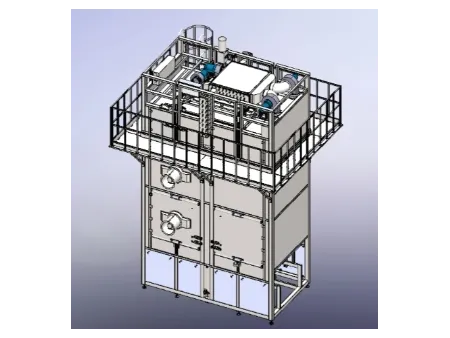

Industrial vertical drying oven for heating and drying glass panels
Vertical multi-layer dryers are designed for efficient drying of glass panels while optimizing floor space. By using a vertical storage and transfer mechanism, they support continuous production in a compact layout, making them ideal for high-volume printing lines.
Technical Specifications
| Model | BWIR-1420U-60 |
| Max. glass size (mm) | 1400 × 2000 |
| Min. glass size (mm) | 500 × 700 |
| Glass thickness (mm) | Flat: ≤ 6 Curved: ≤ 2.1 |
| Number of trays | 60 |
| Conveying speed (m/min) | ≤ 42 |
| Operating temperature | ≤ 200 °C |
| Drying time (min) | 14 |
| Heating capacity (kW) | Approx. 80 |
| Overall dimensions (mm) | 4120 × 2520 × 6120 |
Features
- Equipped with an automated loading and unloading system for smooth panel transfer.
- Glass panels are vertically stacked and transferred using a first-in, first-out circulation method, reducing floor space usage.
- Electric heating elements combined with a scientifically designed air circulation system ensure even temperature distribution and energy-efficient performance.
- The number of drying shelves is customized according to production speed and drying time requirements, supporting fully automated workflows.
